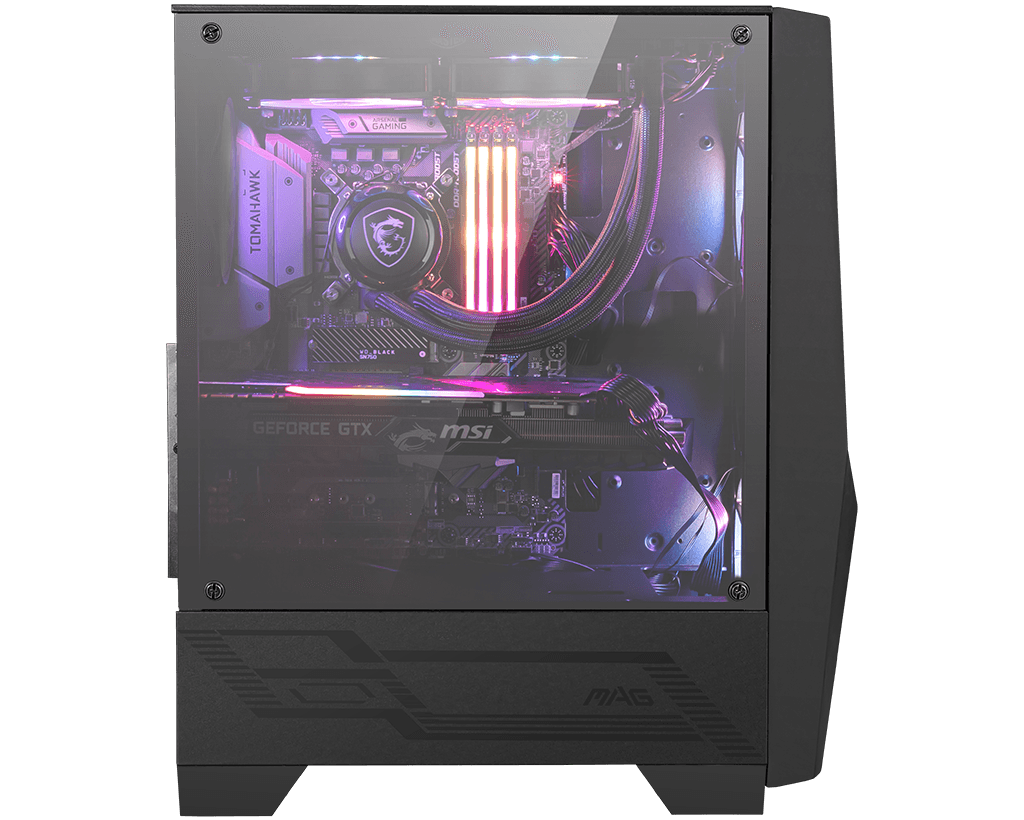

MSI MAG Forge 100R chassis can support up to ATX motherboard, side panel of 4mm tempered glass, up to 140 mm RGB fan, reserved cooling space and front USB 3.2 Gen 1 Type A
ARGB Fan Included Packing with an addressable RGB fan support MSI Mystic Light for the unlimited customization options
1 to 6 ARGB LED Control board Bundle with 1 to 6 ARGB LED control board that can allow you to have more attractive ways to decorate your gaming rig by the LED strips
Mystic Light MSI Mystic light offers multiple colors and effects for you to set up your rig with your own style
Optimized Air Flow Up to 6x system fans could be installed. Provides the whole system with ventilation for better stability
Magnetic Filters The case of magnetic filter on top side is designed to give users the best experience in un-installing and cleaning
ARGB Fan Included Packing with an addressable RGB fan support MSI Mystic Light for the unlimited customization options
1 to 6 ARGB LED Control board Bundle with 1 to 6 ARGB LED control board that can allow you to have more attractive ways to decorate your gaming rig by the LED strips
Fiche Technique
PRODUCT NAME
MAG FORGE 100R
CASE FORM FACTOR
Mid-Tower
MOTHERBOARD FORM FACTOR SUPPORT
ATX / Micro-ATX / Mini-ITX
I/O PORTS
2 x USB 3.2 Gen1 Type-A (5 Gbps) 1 x Audio-out 1 x Mic-in
DRIVE MOUNT SUPPORT
3 x 2.5” / 2 x 3.5”
EXPANSION SLOTS
7
MAXIMUM GPU LENGTH
330 mm / 13 inches
MAXIMUM CPU COOLER HEIGHT
160 mm / 6.3 inches
POWER SUPPLY SUPPORT
ATX
MAXIMUM PSU LENGTH
200 mm / 7.87 inches
FAN SIZE SUPPORT
Front: 3 x 120 mm / 2 x 140 mm Top: 2 x 120 mm / 2 x 140 mm Rear: 1 x 120 mm
PRE-INSTALLED FAN SIZE
Front: 2 x 120 mm Rear: 1 x 120 mm
PRE-INSTALLED FAN TYPE
Front: 2 x ARGB Fan Rear: 1 x Non LED Fan
RADIATOR SIZE SUPPORT
Front: 120 / 140 / 240 mm Top: 120 / 240 mm Rear: 120 mm
