Two massive VRM heatsinks and high quality thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
10+1 DrMOS
A VRM with 10+1 DrMOS delivers the power and efficiency that the latest Intel processors demand
DDR4 5333 (OC)
Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding z ones that significantly reduce crosstalk.
Three M.2 slots (up to 64 Gbps)
Prime Z690M Plus D4 offers a total of three M.2 slots that support data transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot up an d app load times with OS or application drives.
PCIe 5.0 Slot
The 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward compatible CEM connectors for add in cards, and backward compatibility with previous versions of PCI Express.
USB 3.2 Gen 2×2 Type-C
Numerous USB ports support high end rigs loaded with peripherals, including both front and rear USB Type C connectors with fast USB 3.2 Gen 2×2 for transmission speeds of up to 20 Gbps.
Thunderbolt 4 Support
Prime Z690 P features Thunderbolt 4 support via an on board header. With the latest Intel certified ASUS ThunderboltEX 4 add on card, it can enable bi directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy chain function for multi screen connection and supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast charge devices.
VRM Heatsinks and Thermal Pads
Two massive VRM heatsinks and high quality thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
10+1 DrMOS
A VRM with 10+1 DrMOS delivers the power and efficiency that the latest Intel processors demand
DDR4 5333 (OC)
Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding z ones that significantly reduce crosstalk.
Three M.2 slots (up to 64 Gbps)
Prime Z690M Plus D4 offers a total of three M.2 slots that support data transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot up an d app load times with OS or application drives.
PCIe 5.0 Slot
The 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward compatible CEM connectors for add in cards, and backward compatibility with previous versions of PCI Express.
USB 3.2 Gen 2×2 Type-C
Numerous USB ports support high end rigs loaded with peripherals, including both front and rear USB Type C connectors with fast USB 3.2 Gen 2×2 for transmission speeds of up to 20 Gbps.
Thunderbolt 4 Support
Prime Z690 P features Thunderbolt 4 support via an on board header. With the latest Intel certified ASUS ThunderboltEX 4 add on card, it can enable bi directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy chain function for multi screen connection and supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast charge devices.
Intel 1 Gb Ethernet
Ethernet Connection I219 V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.
Q-LED Core
The Q LED Core display produces light patterns by power LED during the Power On Self Test (POST) that can help users troubleshoot potential issues.
VRM Heatsinks and Thermal Pads
Two massive VRM heatsinks and high quality thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
10+1 DrMOS
A VRM with 10+1 DrMOS delivers the power and efficiency that the latest Intel processors demand
DDR4 5333 (OC)
Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding z ones that significantly reduce crosstalk.
Three M.2 slots (up to 64 Gbps)
Prime Z690M Plus D4 offers a total of three M.2 slots that support data transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot up an d app load times with OS or application drives.
PCIe 5.0 Slot
The 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward compatible CEM connectors for add in cards, and backward compatibility with previous versions of PCI Express.
USB 3.2 Gen 2×2 Type-C
Numerous USB ports support high end rigs loaded with peripherals, including both front and rear USB Type C connectors with fast USB 3.2 Gen 2×2 for transmission speeds of up to 20 Gbps.
Thunderbolt 4 Support
Prime Z690 P features Thunderbolt 4 support via an on board header. With the latest Intel certified ASUS ThunderboltEX 4 add on card, it can enable bi directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy chain function for multi screen connection and supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast charge devices.
Intel 1 Gb Ethernet
Ethernet Connection I219 V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.
Q-LED Core
The Q LED Core display produces light patterns by power LED during the Power On Self Test (POST) that can help users troubleshoot potential issues.
VRM Heatsinks and Thermal Pads
Two massive VRM heatsinks and high quality thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
10+1 DrMOS
A VRM with 10+1 DrMOS delivers the power and efficiency that the latest Intel processors demand
DDR4 5333 (OC)
Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding z ones that significantly reduce crosstalk.
Three M.2 slots (up to 64 Gbps)
Prime Z690M Plus D4 offers a total of three M.2 slots that support data transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot up an d app load times with OS or application drives.
PCIe 5.0 Slot
The 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward compatible CEM connectors for add in cards, and backward compatibility with previous versions of PCI Express.
USB 3.2 Gen 2×2 Type-C
Numerous USB ports support high end rigs loaded with peripherals, including both front and rear USB Type C connectors with fast USB 3.2 Gen 2×2 for transmission speeds of up to 20 Gbps.
Thunderbolt 4 Support
Prime Z690 P features Thunderbolt 4 support via an on board header. With the latest Intel certified ASUS ThunderboltEX 4 add on card, it can enable bi directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy chain function for multi screen connection and supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast charge devices.
Intel 1 Gb Ethernet
Ethernet Connection I219 V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.
Q-LED Core
The Q LED Core display produces light patterns by power LED during the Power On Self Test (POST) that can help users troubleshoot potential issues.
Fiche Technique

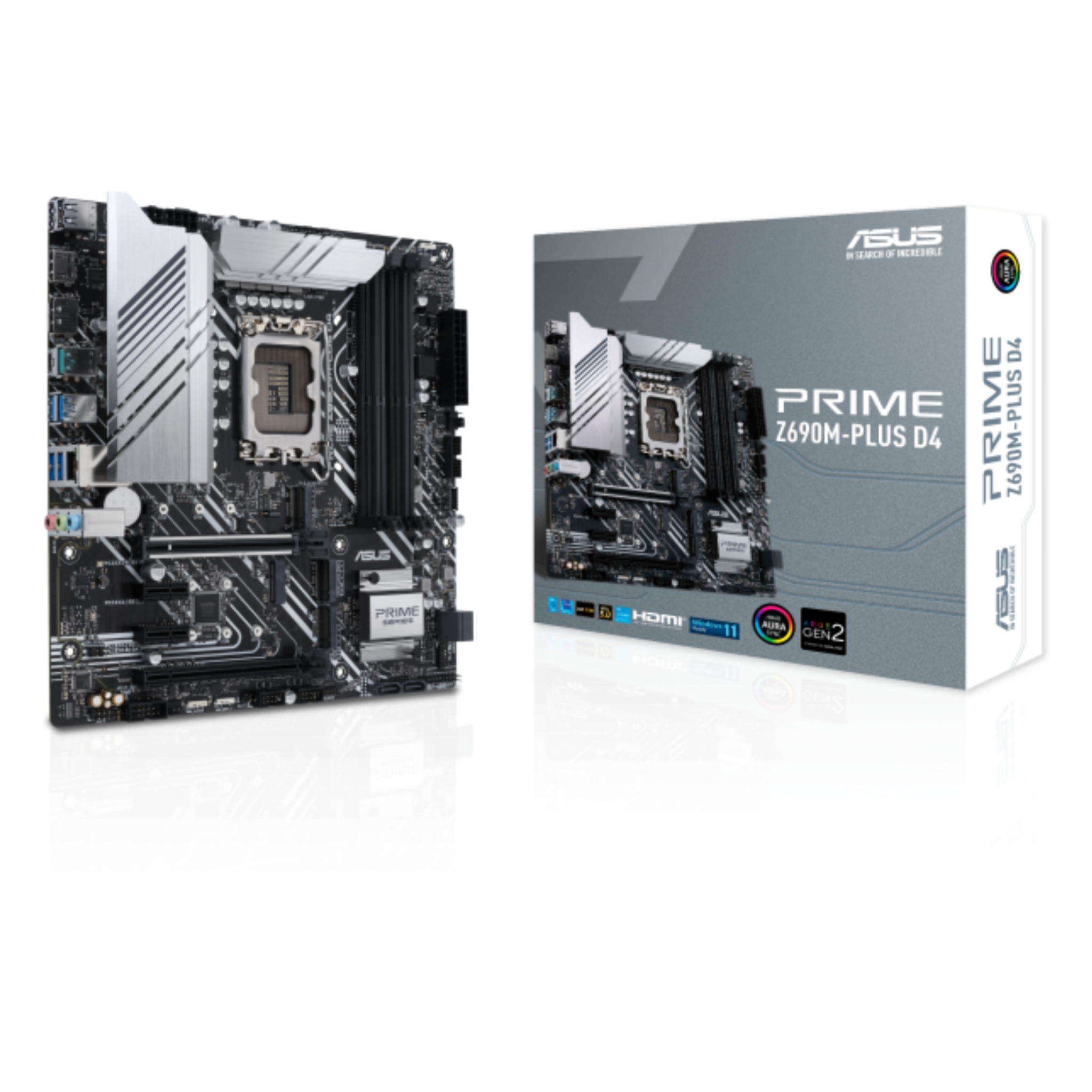

Model
PRIME Z690M-PLUS D4
CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to http://www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® Z690 Chipset
Mémoire
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC) /3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to http://www.asus.com for memory support list.
Carte graphique
1 x DisplayPort** 1 x HDMI® port*** *Graphics specifications may vary between CPU types. Please refer to http://www.intel.com for any updates. **Support 4K@60Hz as specified in DisplayPort 1.4. ***Support 4K@60Hz as specified in HDMI 2.1.
Slots d'expansion
Intel® 13th & 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot Intel® Z690 Chipset** 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Please check PCIe bifurcation table in support site. ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
Stockage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® Z690 Chipset** M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Ethernet
1 x Intel® 1Gb Ethernet
Wireless & Bluetooth
M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately.
USB
Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports* * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Ports E/S du panneau arrière
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Intel® 1Gb Ethernet port 3 x Audio jacks
Connecteurs internes I/O
Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header
Fonctionnalités spéciales
ASUS 5X PROTECTION III – DIGI+ VRM (- Digital power design with DrMOS) – LANGuard – Overvoltage Protection – SafeSlot – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot ASUS Thermal Solution – VRM heatsink design ASUS EZ DIY – ProCool AURA Sync – AURA RGB header – Addressable Gen 2 header
Fonctionnalités logicielles
ASUS Exclusive Software Armoury Crate – AURA Sync – Fan Xpert 4 AI Suite 3 -Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Gestion
WOL by PME, PXE
Accessoires
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 SSD screw packages Installation Media 1 x Support DVD Documentation 1 x User guide
OS
Windows® 11 64-bit, Windows® 10 64-bit
Format
mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
